THE DOORGAP GAUGE®

Learn more about The DoorGap Gauge®. Click the blue circles to get more information.

Homepage Paypal

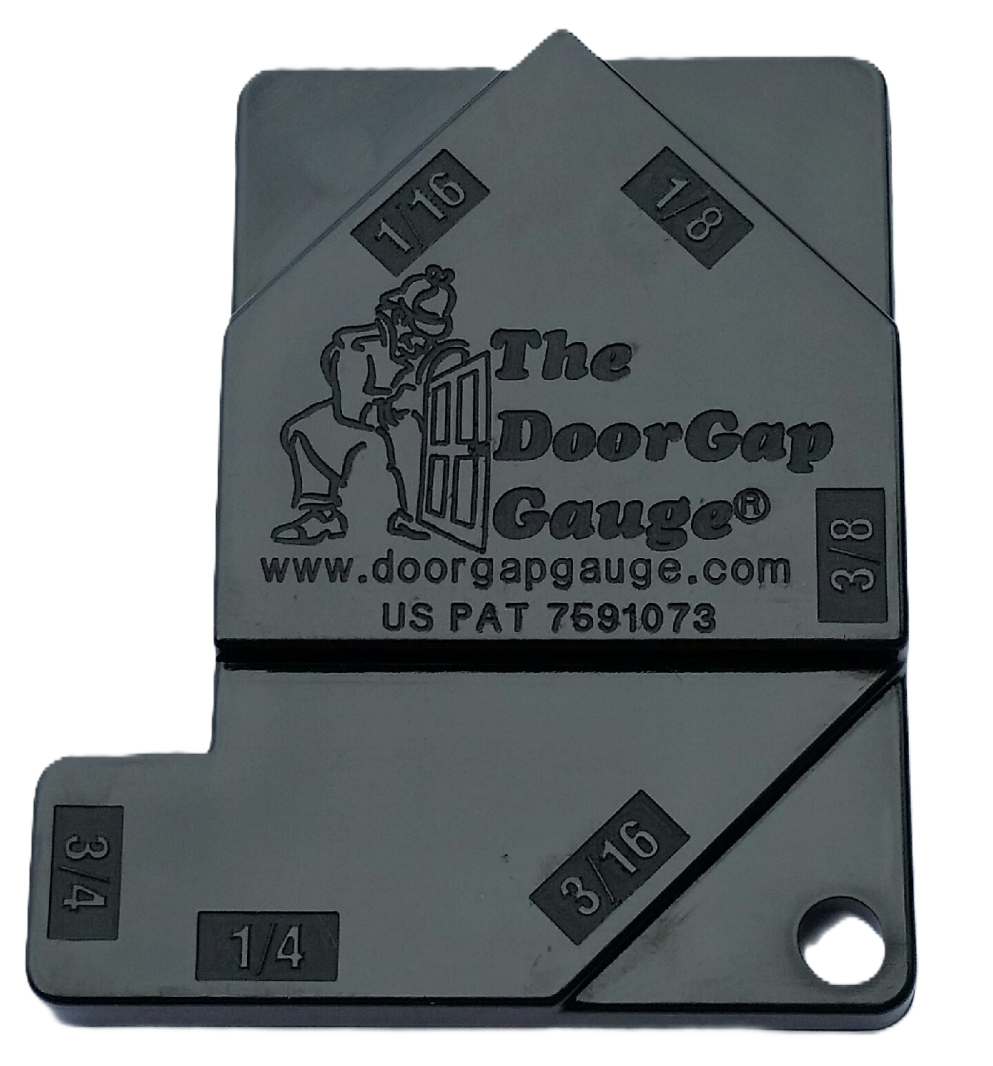

+ TOP RIGHT CORNER - 1/8
+
+
+ CENTER - BRANDING
+ TOP LEFT CORNER - 1/16
+
+
+ BOTTOM LEFT - 3/4
+
+ BOTTOM LEFT - 1/4
+
+ BOTTOM RIGHT - 3/16
Ways To Use The DoorGap Gauge

WHO NEEDS IT

The ONLY Gauge You Will Need To Check Fire Door Assembly Clearance Requirements!

Homepage Paypal

Contractors

A sure way to check Fire Door Clearance Requirements before inspection

Homepage Paypal

Inspectors

Will speed up your inspections
More accurate than a tape measure
Compact and easy to use

Homepage Paypal

Distributors

Supply with job to ensure Fire Assemblies are installed per Fire Door Requirements

Homepage Paypal

Owners/Facilities Manager

To ensure your Fire Door Assemblies meet the requirements set forth by NFPA 80 - Current Editions

Homepage Paypal

Checking Life Safety Egress Assemblies

Checking other construction assemblies requiring specific clearances and operational tolerances

STANDARDS

Door Assembly Clearance Requirements
NFPA 80-Current Editions

Steel Doors

The clearance between the top and the vertical edges of the door, the frame, and the meeting edges of doors swinging in pairs shall be 1/8" - 1/16" for Steel Doors.

Wood Doors

The Clearance between the top and vertical edges of the door, the frame and the meeting edges of doors swinging in pairs shall not exceed 1/8" for Wood Doors.

Bottom of Door

The clearance under the bottom of a door and non- combustible surface where no sill exists shall be a maximum of 3/4".

Non-Combustible Sills

The clearance under the bottom of a door and raised non-combustible sills shall be a maximum of 3/8".

Dutch Doors

Where the bottom of the door is more than 38" above the finished floor, the clearance under the bottom of a door shall be a maximum of 3/8" (i.e. Dutch Doors).

How To Use The DoorGap Gauge®

Door Style

Can be used with any style door - hollow metal, wood, aluminum or fiberglass.

Clearances

Clearances shall be measured from the pull face of the door(s).

Expected Fit

The gauge should fit snug in the gap and be able to slide easily along the entire length of the gap.

Gauge Insertion

Insert the gauge between the door and the frame or at the door bottom.

Dimension Portion

Locate the dimension portion of the gauge needed to measure your gap.

Proper Clearance

If the fit is too loose, too tight, or doesn't fit, the assembly needs to be corrected for the proper clearance.

Approved Methods

Experienced tradesmen can make corrections using established, approved methods.

Specifications

See specifications on the Articles Page

ORDERING THE DOORGAP GAUGE®

Ordering The DoorGap Gauge® is easy.  You can order singles, quantities, or our POP display (with 10 units). Please be sure to fill out the order information completely when you are taken to our PayPal cart.  Just click on one of the pictures below to place your order.

Note:  We ship by US Postal Service so we will need a COMPLETE postal mailing address.   Please include your Company Name for the correct routing for your shipment.  FOB is Memphis, TN

PLEASE VERIFY YOUR MAILING ADDRESS IS CORRECT FOR UNITED STATES POSTAL SERVICE DELIVERIES.  RETURNED OR NON-DELIVERABLE ORDERS WILL NOT BE RE-SHIPPED AND CREDIT WILL NOT BE AUTHORIZED OR ISSUED.

At this time we do not offer Overnight or Next Day shipping, nor do we have expedited processing.  If you require any of those items please visit justdoortoolz

PayPal does NOT require an account to purchase via credit card!

Scroll down for contact information to purchase The DoorGap Gauge® outside of the continental United State

The DoorGap Gauge

$23.95

CHOOSE

POP Display

$229.50

CHOOSE

POP Display Refills-10

$229.50

CHOOSE

POP Display Refills-20

$459.00

CHOOSE

The DoorGap Gauge

$23.95

    POP Display

    $229.50

    Order A POP Display
    Includes 10 DoorGap Gauges

    Display Dimensions: 5 1/2"w x 5 3/4"d x 7 1/2"h
    (Allow 2 weeks for delivery of display)

      POP Display Refills-10

      $229.50

      Refills for The DoorGap Gauge POP Display

      Quantity - 10 Refills

        POP Display Refills-20

        $459.00

        Refills for The DoorGap Gauge POP Display

        Quantity - 20 Refills

          ARTICLES

          Thanks for stopping by our article page. Here we will post articles and reviews of our product for you to see there is no easier method of dealing with those door clearances and gaps.

          POP Display Refills-20

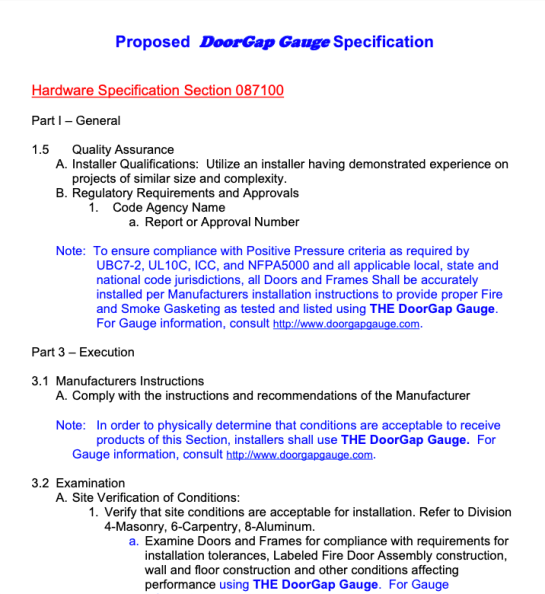

          DoorGap Gauge Specification Section 087100

          Hardware specifications

          POP Display Refills-20

          DoorGap Gauge Specification 081100

          Steel Doors and Frames

          POP Display Refills-20

          Measuring Door Gaps 180417

          The proper way to measure door gaps

          POP Display Refills-20

          2008 Smoke and Barrier Partition Requirements

          Defines the most up-to-date requirements for smoke barriers and smoke partitions.

          POP Display Refills-20

          Required Clearance - Not So Clear

          This article by Lorin Neyer of California really puts a perspective on what the Fire Marshal is looking for when they inspect a fire rated door. Originally printed in the June 2002 issue of Doors & Hardware magazine.
